Product Details:
Payment & Shipping Terms:
|

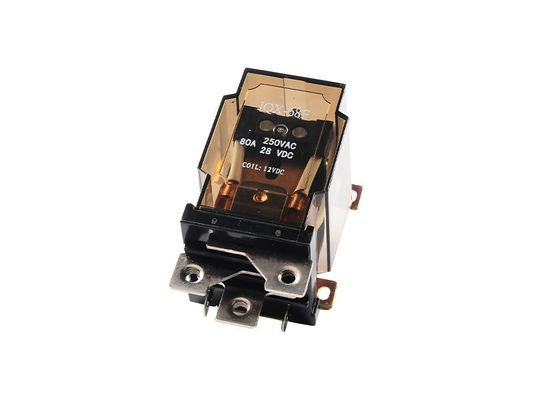

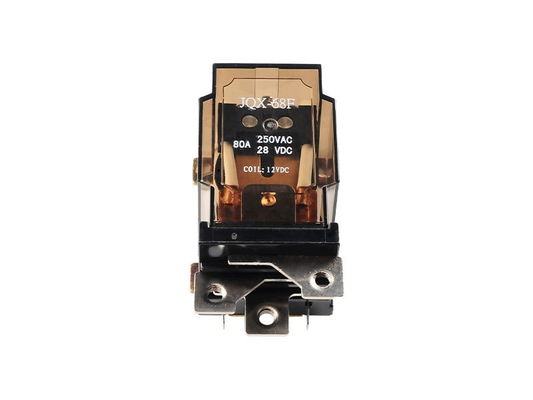

| Type: | JQX-68F 1Z | Coil Voltage: | 220VDC |
|---|---|---|---|
| Theory: | Electromagnetic Relay | Rated Current: | 80A |
| Weight: | 170g | Contact Material: | Silver Alloy |
| Size: | 78*46*46.5 | Protection Type: | Close Type |
| Highlight: | jqx 68f electromagnetic relay,80a electromagnetic relay,mounting 80a relay |
||
Product feature:
1. Sound Construction, shock resistance Strong, seismic resistance, Long Working Life
2. Provides 1 set of contact conversion
3. Load, switch Power: 80A
4. Bolt type, Rail mounting
2.Contact Form Description
Changeover Type (Z):
In the middle there is a moving contact, when the coil is not energized, the moving contacts will be disconnect and one of the static contacts will be closed. After the coil is energized, the moving contact will move, makes the original broken change to closed state, and original closed state changed to disconnected state, to achieve the purpose of conversion.
Normally Open Type (H):
The contact is disconnect state when coil is not energized, and contact will be closed when coil is energized.
Normally Closed Type (D):
The contact is closed state when coil is not energized, and contact will be disconnected when coil is energized.
3.Specification
| Contact Form | 1Z 1H 1D | ||
| Contact Material | Silver alloy | ||
| Coil Power at 23℃ | DC(W) | <1.8W | |
| AC(V) | <4VA | ||
| Coil Voltage | 6~220V DC(V) | ||
| Pick-up voltage at 23℃ | DC<75% AC<80% | ||
| Drop-out Voltage at 23℃ | DC>10% AC>30% | ||
| Max Voltage at 23℃ | 110% | ||
| Contact Resistance (at 6VDC 1A) | ≤100mΩ | ||
Dielectric | Between Open contacts | ≥1500VAC 50Hz/1min Leakage Current 1mA | |
| Contacts Pieces | |||
| Between Coil & Contacts | ≥2500VAC 50Hz/1min Leakage Current 1mA | ||
| Insulation Resistance(MΩ) at 500VDC | ≥1000MΩ | ||
| Service Life | Electrical | 10^5 Times | |
| Mechanical | 10^6 Times | ||
| Ambient Temperature | -25°C ~ +55°C | ||
| Teminal Type | Screw Mounting | ||
4. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
5. Sample Policy
To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.
6. Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
7. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
