| Type: | Power Relay | Rated Voltage: | 24VDC |
|---|---|---|---|
| Coil Voltage: | DC6-220V | Operate Time: | 50ms |
| Coil Pull-in Voltage: | Under 70% | Temperature: | -30℃~ +80 ℃ |
| Size: | 74x47x47 | Contact Form: | 1Z(1C 1H) |
| Highlight: | 50A SPDT Power Relay,5 Pin SPDT Power Relay,SPDT Electromagnetic Power Relay |
||

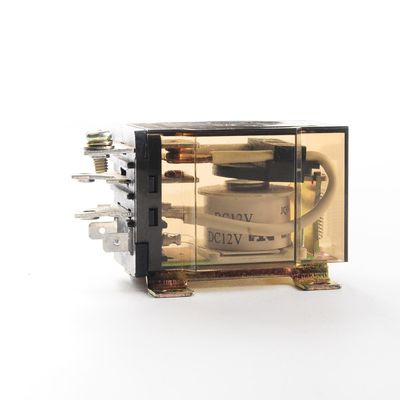

1. JQX-40F/40 50A SPDT Electromagnetic Power Relay 24V
2. Specification
| JQX-40 | JQX-40F | |
| Max Switching Voltage VDC/VAC | 28VDC/250VAC | 28VDC/250VAC |
|
Max Switching Power W/VA |
3.5WAC 5.5VA | 1.12KW/10KVA |
| Rated Load(resistive) | 1Z: 28VDC/40A 250VAC/40A |
1Z:28VDC/40A 250VAC/40A 2Z:28VDC/40A 250VAC/40A |
|
Coil Nominal Voltage DC/AV |
6~220VDC/6~220VAC
|
6~220VDC/6~380VAC |
| Coil Pick up Voltage |
AC 80% DC 75% |
AC 75% DC 90% |
| Coil Drop Out Voltage |
DC 5% AC 30% |
AC 30% DC 10% |
| Coil Power W/VA | 1Z/3.5W / 5.5VA | 3.5W/5.5VA |
Specifications Data
| Item | JQX-40 | JQX-40F | |
| Contact Resistance (mΩ) | <50 | <50 | |
| Insulation Resistance (mΩ) | >500 | >1000 | |
|
Dielectric Strength Vr.ms |
Between Open Contacts | >1500VAC | >1500VAC |
| Between Coil and Contacts | > 2000VAC | >2000VAC | |
| Between Contacts Form | > 2000VAC | >2000VAC | |
| Ambient Temperature (℃) | -45 ~+55℃ | -45 ~+55℃ | |
| Operation/Release Time (ms) | <20/20ms | < 20/20ms | |
| Service Life | Electrical (Operation) | 100000 | 100000 |
| Mechanical (Operation) | 10000000 | 10000000 | |
Changeover Type (Z):
In the middle there is a moving contact, when the coil is not energized, the moving contacts will be disconnect and one of the static contacts will be closed. After the coil is energized, the moving contact will move, makes the original broken change to closed state, and original closed state changed to disconnected state, to achieve the purpose of conversion.
Normally Open Type (H):
The contact is disconnect state when coil is not energized, and contact will be closed when coil is energized.
